Poly foam pigs, essential components in pipeline maintenance, possess the following characteristics:
Bullet-shaped Design: These pigs
feature a bullet-shaped structure with a coated b bottom, meticulously crafted from high-quality
polyurethane elastomer for exceptional resistance, durability and resilience against harsh
conditions.Versatile Application: Poly foam pigs
are adept at traversing various oil and gas piping systems, making them indispensable for pipeline
maintenance tasks.Customization Options: Available in
diverse abrasive materials and polyurethane patterns, foam pigs can be tailored to specific cleaning
requirements, enhancing their effectiveness.Size Range: Foam pigs come in sizes
ranging from 2 inches to 56 inches, accommodating a wide range of pipeline diameters and operational
needs.Additional Features: These pigs can be
equipped with pulling nylon rope, transmitter gravity, gauge plates, and brushes, further enhancing
their functionality and adaptability to different pipeline configurations.Poly foam pigs are classified based on their density, determined by the polyurethane material used. Here's a refined breakdown of these classifications:
Low Density (1 to 2 lbs/ft3):
Primarily utilized for tasks such as drying and sweeping loose debris within pipelines. These
lightweight pigs are ideal for gentle cleaning applications.Medium density (5 to 8 lbs/ft3): Offer
versatile cleaning capabilities and excellent wear resistance for various pipeline maintenance tasks
like wiping, batching, dewatering.High density foam pigs (9 to 10
lbs/ft3): Deliver robust cleaning power for heavy-duty cleaning and dewatering operations.
Foam pigs are available in various configurations to suit different cleaning requirements:

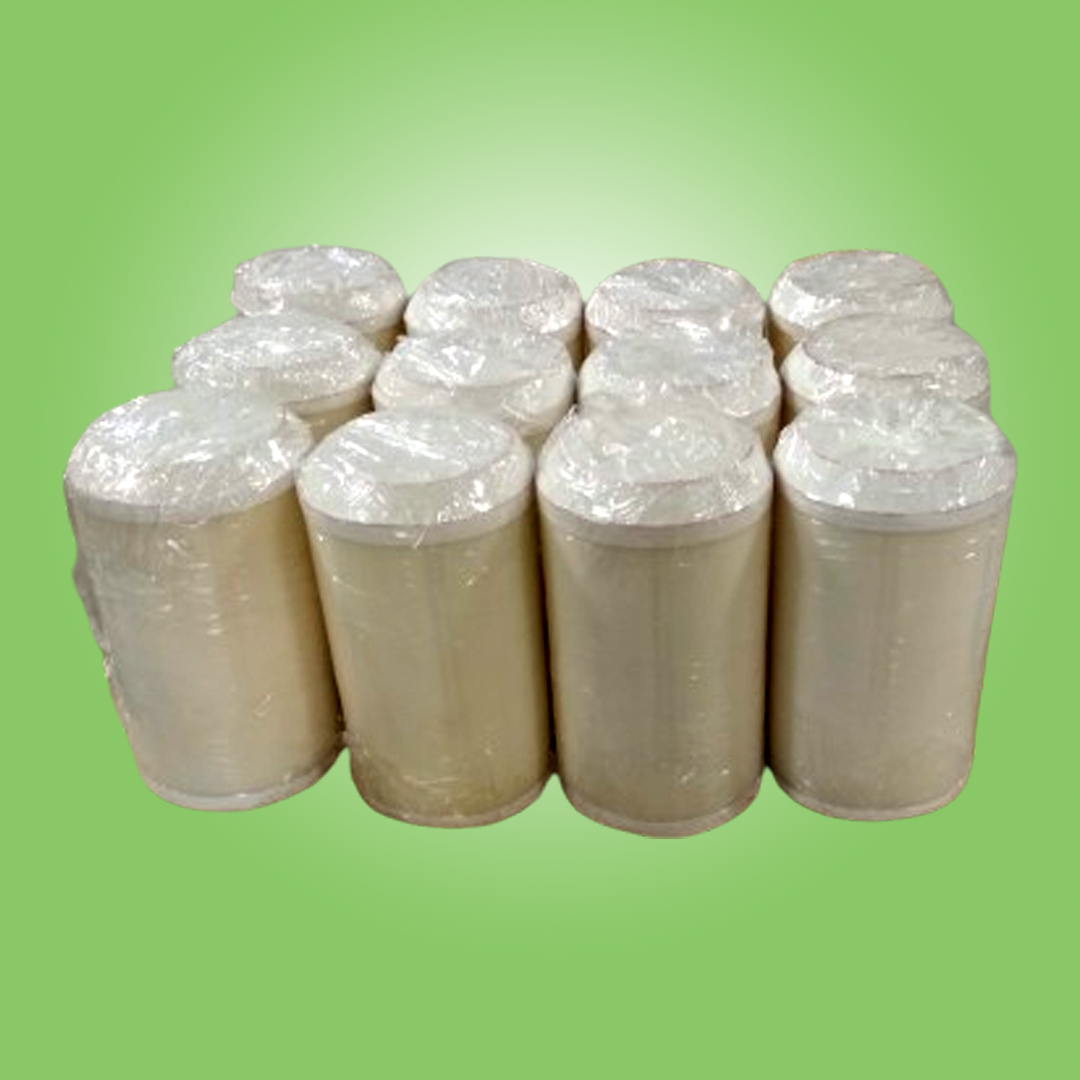

Bare Foam Pig: Available in low,

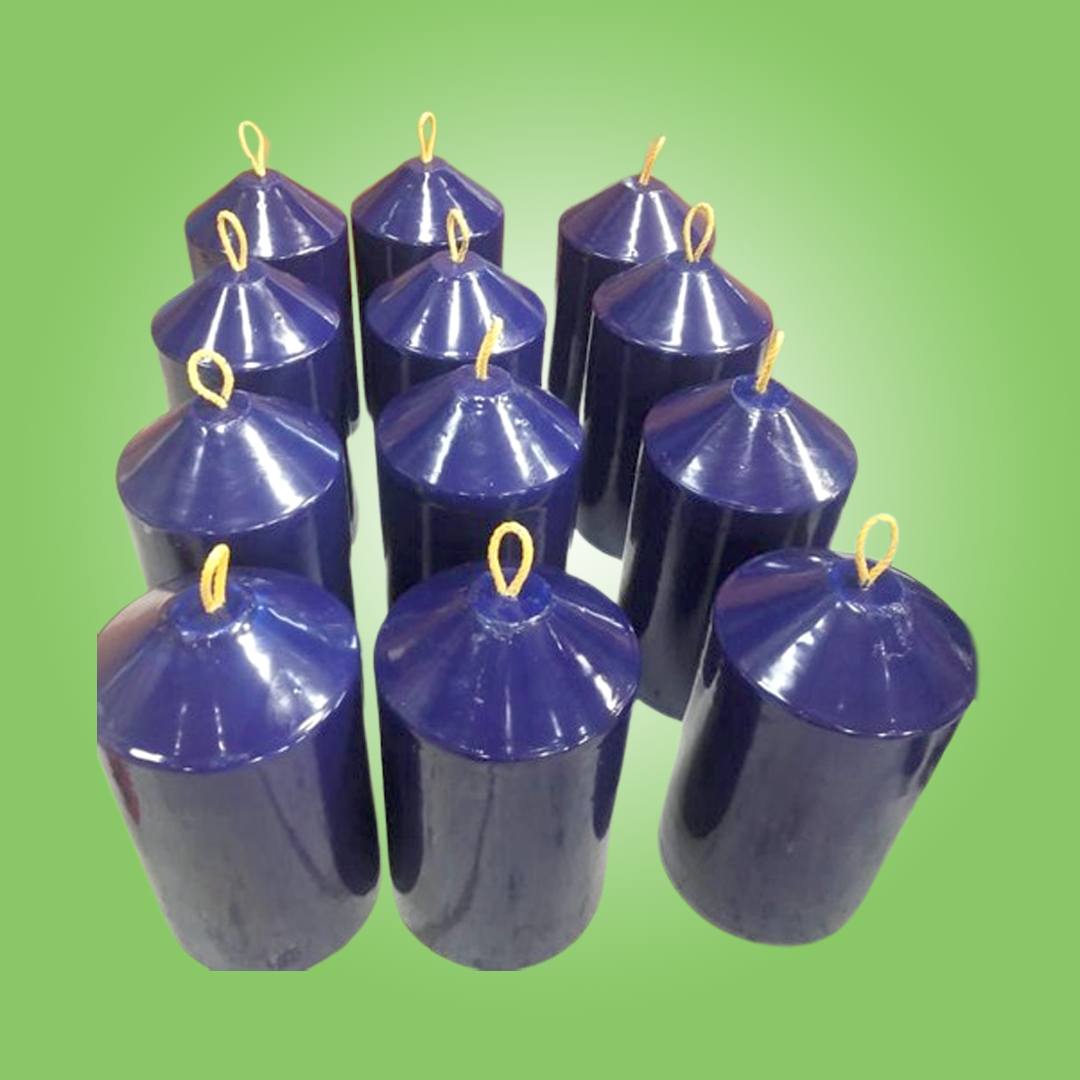

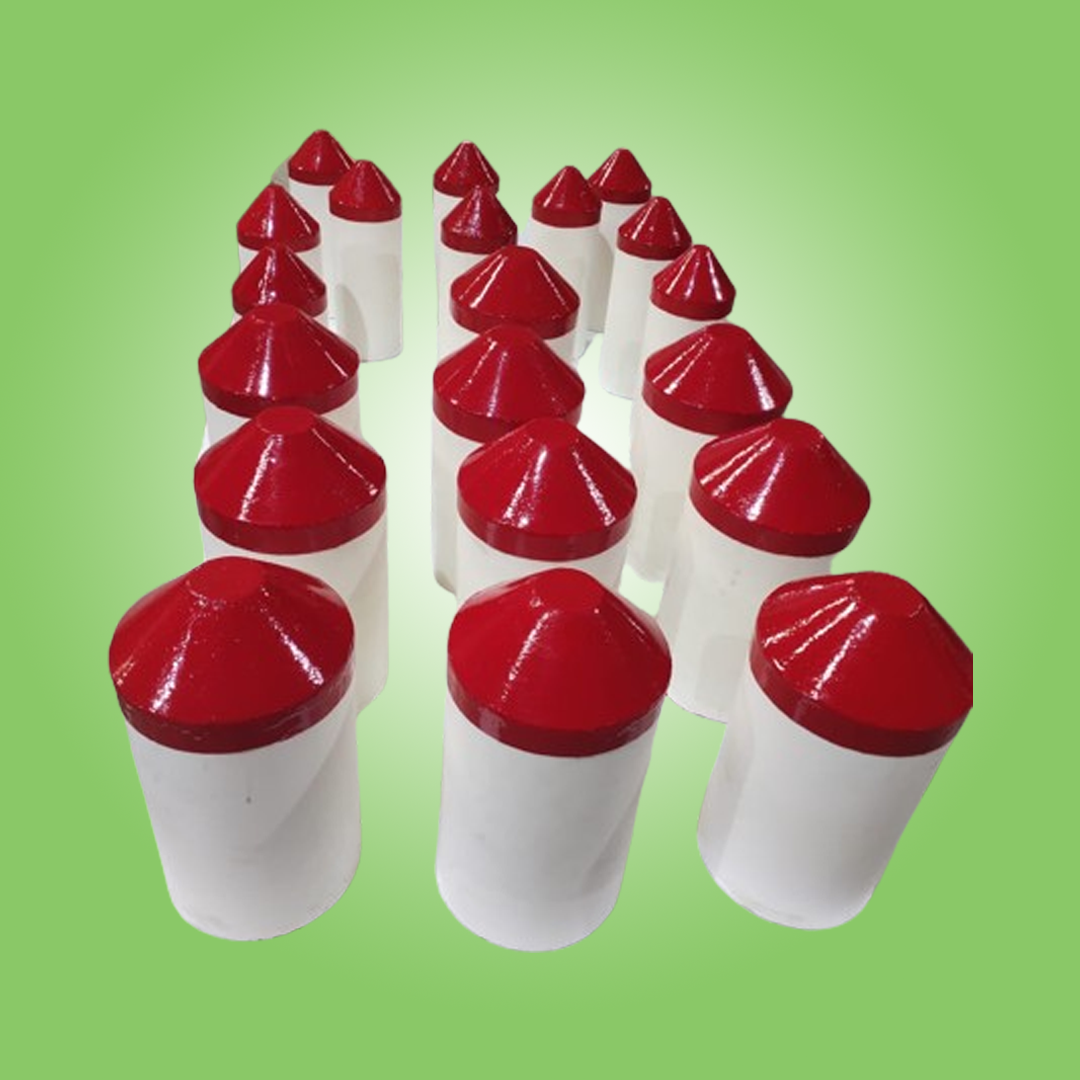

medium, and high densities, these pigs offer basic cleaning capabilities.Fully Coated Foam Pig: Also
offered in low, medium, and high densities, these pigs are entirely coated for enhanced

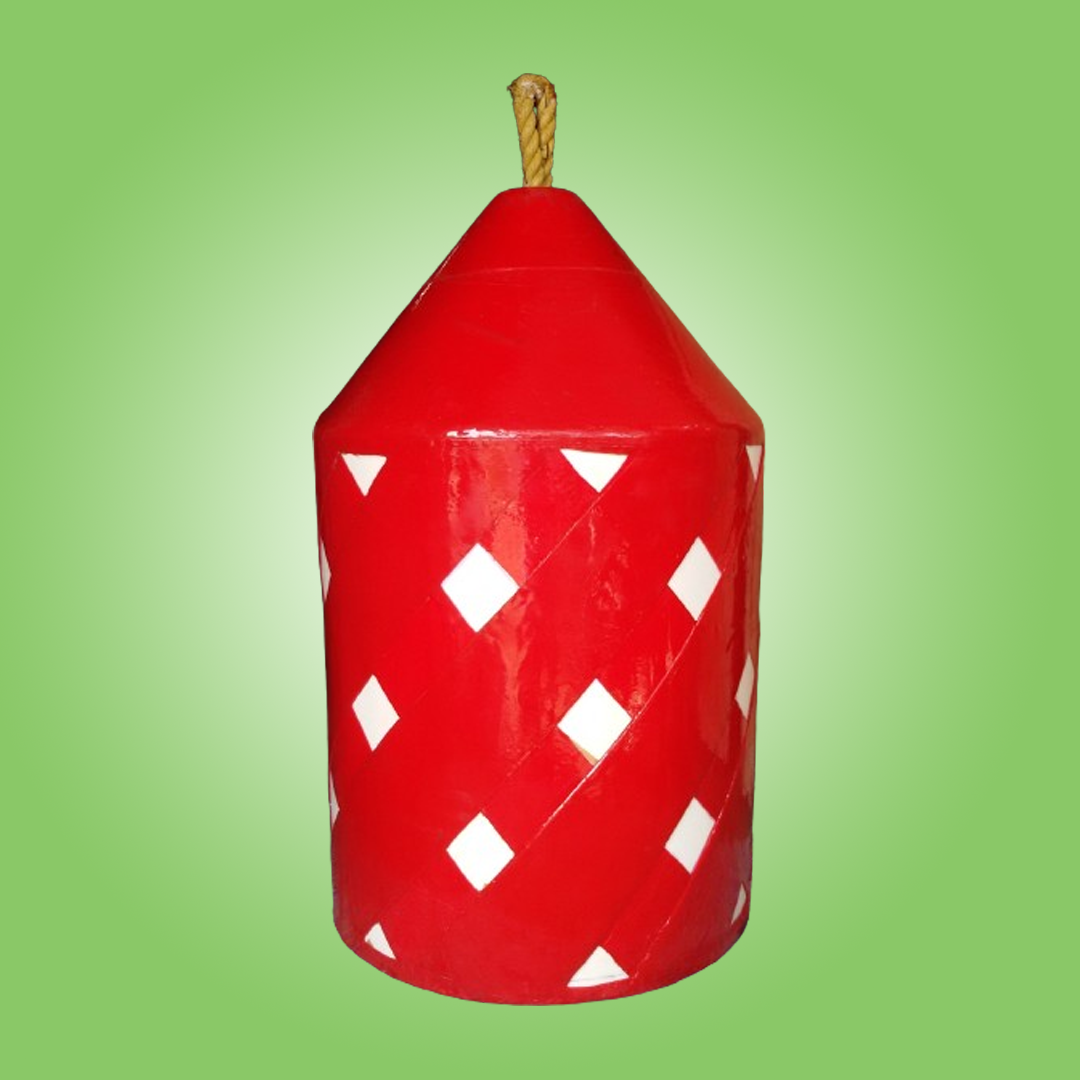

durability and resistance.Criss Cross Foam Pig: Available in
medium and high densities, these pigs feature a criss-cross pattern for improved cleaning
efficiency.Foam Pig With Nylon Rope:

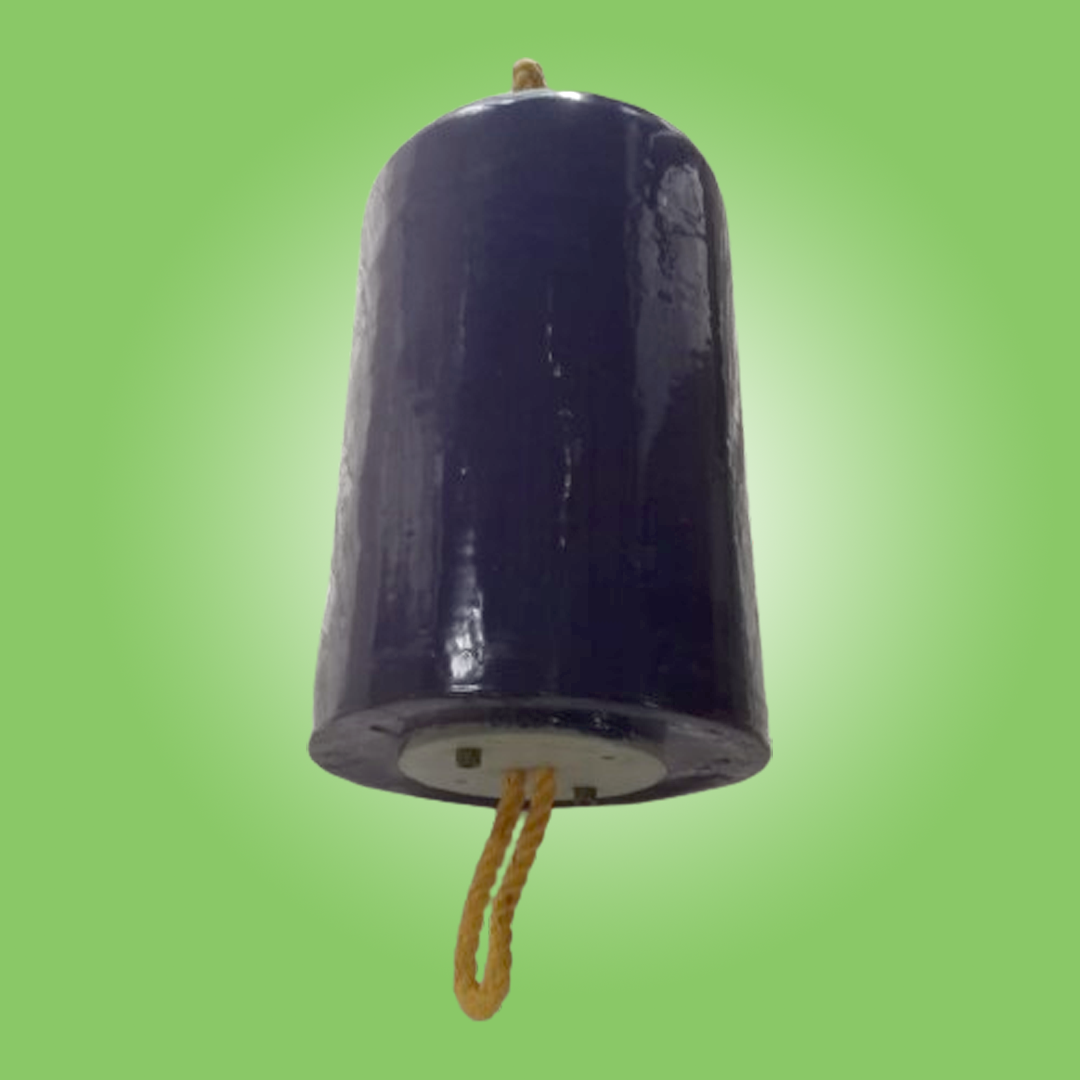

Available in low, medium, and high densities, these pigs offer basic cleaning capabilities.Foam Pig With Housing for Fitting
Tracking Transmitter: Also offered in low, medium, and high densities, these pigs are

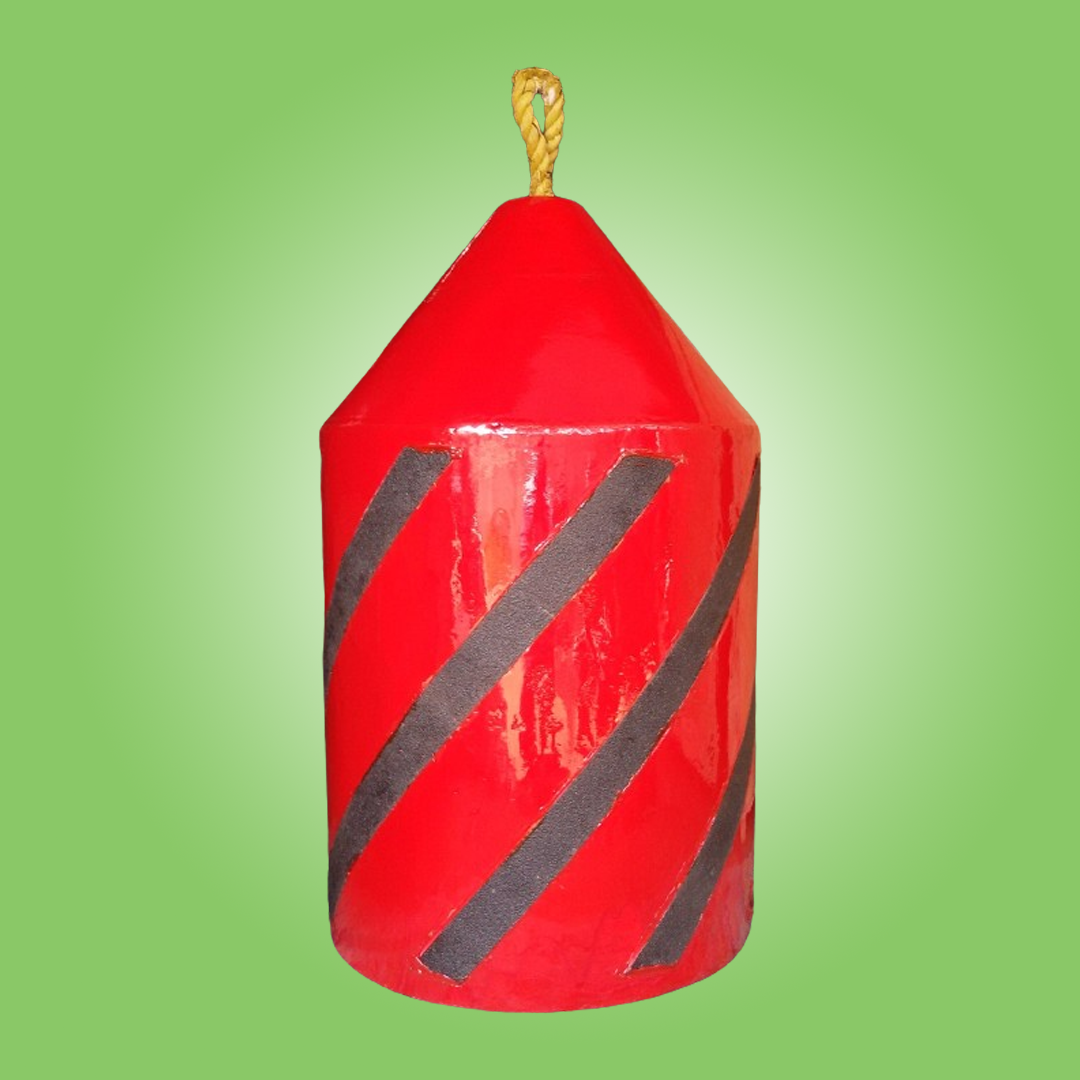

entirely coated forenhanced durability and resistance.Foam Pig With Brush: Offered in
medium and high densities, these pigs are equipped with brushes for enhanced cleaning
performance.
